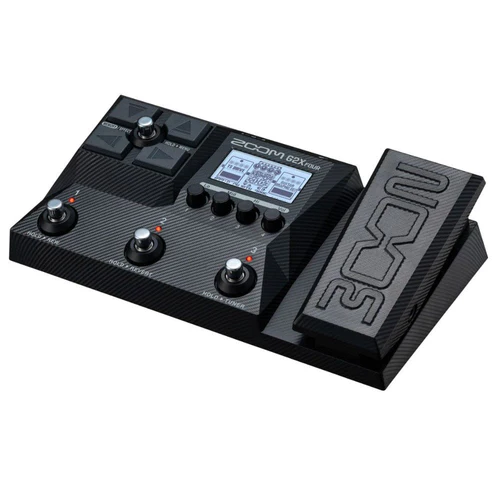

Zoom G-2X Four Multi Effect Processors

Zoom  G-2X Four Multi Effects Processors Overview:

The ZOOM G2 FOUR and G2X FOUR give guitarists more tone variations than ever before thanks to all-new amp modeling and innovative IR technology. You’ll dial in amazing sounds right out of the box.

Rich Amp Models
The G2 FOUR and G2X FOUR take amp modeling to the next level. They combine faithfully reproduced models of classic amps and pair them with cabinet models that utilize our new Multi-layer IR technology. This gives guitarists both great tone and the feeling of that “big stage” sound in any environment.

Multi-Layer IR
Each amp model is built with Zoom’s innovative Multi-Layer IR’s, to recreate the tonal characteristics and feel of playing through classic amps and cabinets. These Impulse Responses were captured from iconic cabinets at 3 different volumes and are blended and activated based on the volume of your guitar.

Historic Guitar Sounds
Preloaded with 250 presets, these patches are designed to recreate the evolution of guitar tone. Each patch recreates the sound of an iconic song from the 50’s to today.

Jam Packed with Effects
Build patches from over 100 effects, exploring a wide range of traditional and boutique tones, from classic spring reverbs to extreme distortions, modulation effects, wah, and more. Mix and match up to 7 effects to build your own custom patches.

Navigate and Create
Cross Key Navigation
Zoom’s new cross key navigation switches help you control the pedal using just your feet, allowing you to make adjustments on the fly. Additionally, the 4 rotary encoders allow for quick adjustments to effects parameters as well as output settings.

User Interface
The newly designed user interface makes it easier than ever to edit effects parameters, reorder effects chains, and access the looper and tuner.

Optimized for Amps, Monitors, and Headphones
The G2 FOUR is designed to output to guitar amps, studio monitors, PA’s, and headphones . When you power on the pedal, select LINE or AMP to ensure the G2 FOUR is optimized for your setup.

Features:

• 22 Amp/Cabinet models developed by Multi-Layer IR technology for greater realism
• 79 Effects including modelling of renowned boutique pedals
• Up to 6 effects + 1 pedal effect can be used simultaneously
• Output EQ (Lo-Mid-Hi-Vol) for instant adjustment of overall sound quality
• 300 memory patches (250 factory presets + 50 users)
• Handy Guitar Lab app (iOS/Android) for editing on smartphones and access to new effects (requires connection via USB-C port)
• Looper function for recording phrases of up to 80 seconds
• 68 rhythm patterns that can be played back in sync with the looper
• AUX IN jack for connecting music players and other audio devices
• Auto-save and Revert functions for maximum flexibility when editing patches
• Tuner function that supports open and drop tuning
• 2-IN / 2-OUT Audio Interface function (via built-in USB-C port)
• Expression pedal for real-time control of Volume, Pitch and Wah (G2X FOUR only)

Specifications:

• Maximum number of simultaneous effects 6 effects + 1 pedal effect
• User patch memories 300
• User patch memories 44.1 kHz
• A/D conversion 24-bit 128× oversampling
• D/A conversion 24-bit 128× oversampling
• Signal processing 32-bit
• Frequency response 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (10kΩ load)
• Display 256×128 dot-matrix LCD

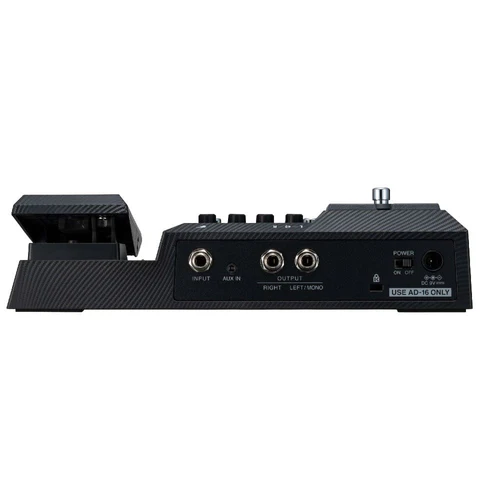

• Inputs
• INPUT
  • Standard mono phone jack
  • Rated input level: −20 dBu
  • Input impedance (line): 470 kΩ
• AUX IN
  • Stereo mini jack
  • Rated input level：–10 dBu
  • Input impedance (line)：10 kΩ
• Outputs
• LEFT/RIGHT
  • Standard mono phone jack
  • Maximum output level: +9.3 dBu (when output impedance 10 kΩ or higher)

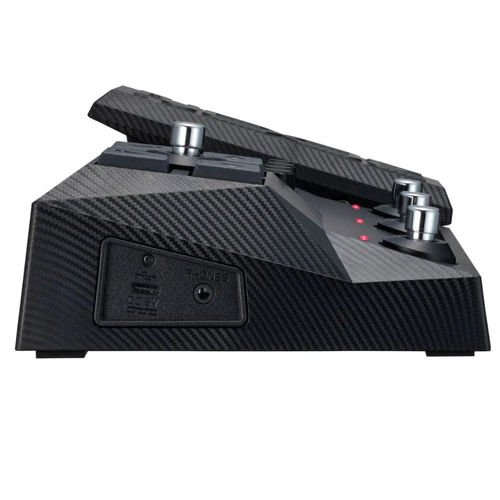

• PHONES
  • Stereo mini jack
  • Maximum output power: 20 mW + 20 mW (into 32Ω load)
• Input S/N 122 dB
• Noise floor (residual noise)
  • LEFT/RIGHT –99.3 dBu
  • PHONES: –99.3 dBu
• Control input FP02M input (G2 FOUR only)
• Power
• AC adapter
  • 9V DC 500mA center negative (ZOOM AD-16)
  • • USB bus power is supported.
• USB
  • USB 2.0 Type-C port (use cable that supports Type-C)
  • Handy Guitar Lab: USB 1.1 Full Speed
  • Audio interface: USB 2.0 Full Speed,
  • 44.1kHz, 32-bit, 2-in/2-out
  • • Use a USB cable that supports data transfer.
• Dimensions
  • G2X FOUR 150 mm (D) × 274 mm (W) × 71 mm (H)
  • G2X FOUR 951g
